Flow Chemistry

–

–

Microstructured mixers and reactors for fine chemicals and nanoparticles

–

–

Little Things Factory is a brand of PLANOPTIK.

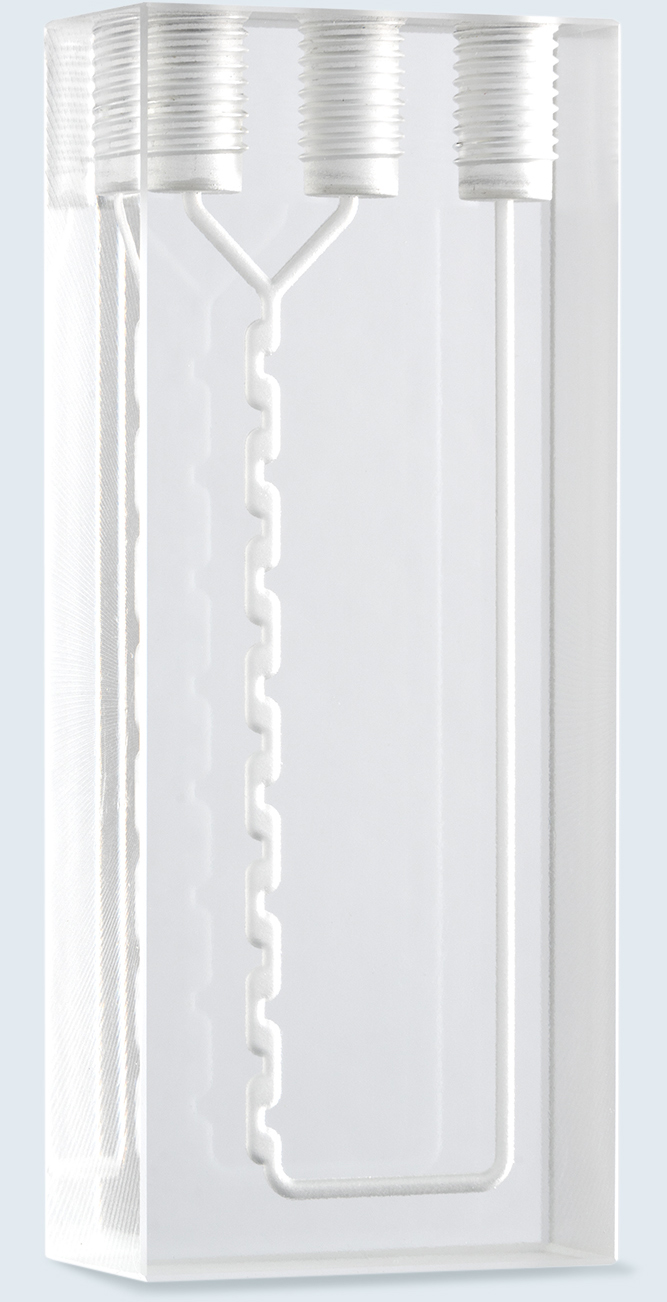

Flow reactor

–

–

Flow reactors

–

–

Flow reactor

PLANOPTIK develops and manufactures microstructured mixers and flow reactors made of glass, quartz, and glass-silicon combinations. These materials are well suited for microfluidic applications due to their chemical inertness, transparency, and thermal stability, enabling precise process control and easy cleaning. Their resistance to aggressive media makes PLAN­OPTIK’s flow reactors ideally suited for chemical and pharma­ceutical synthesis.

From lab scale to production scale:

– GREEN CHEMISTRY
– FINE CHEMICAL PRODUCTION
– API PRODUCTION
– PHOTOCHEMISTRY
– NANOPARTICLE SYNTHESIS
– ORGANIC SYNTHESIS
– CATALYTIC REACTIONS

–

–

Key advantages of glass
in flow chemistry

–

–

Advantages Plus

Chemical
resistance

Advantages Plus

Heat
resistance

Advantages Plus

Optical
transparency

Advantages Plus

UV
transmission

Advantages Plus

Low
fluorescence

Advantages Plus

Bio
compatible

Advantages Plus

Long term
stable

Advantages Plus

High mixing
intensity

Result

Cost
effective!

Result

No hurdles
when upscaling!

–

–

Individuelly developed
or off the shelf

–

–

–

–

Starter sets

–

–

PLANOPTIK’s Flow Chemistry Starter Sets are designed to introduce trainees to flow chemistry applications and support those already working in the field. The Starter Sets are developed for laboratory-scale syn­theses and for industrial production. They enable a straightforward transfer from batch processes to conti­nuous processes using standard laboratory equipment.

From lab scale to production scale:

– FLOW CHEMISTRY
– PHOTOCHEMISTRY
– NANOPARTICLE SYNTHESIS

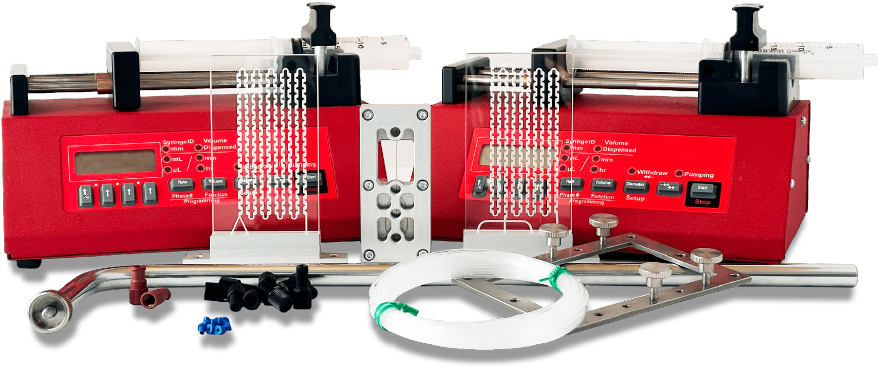

Flow Chemistry Starter Sets

–

–

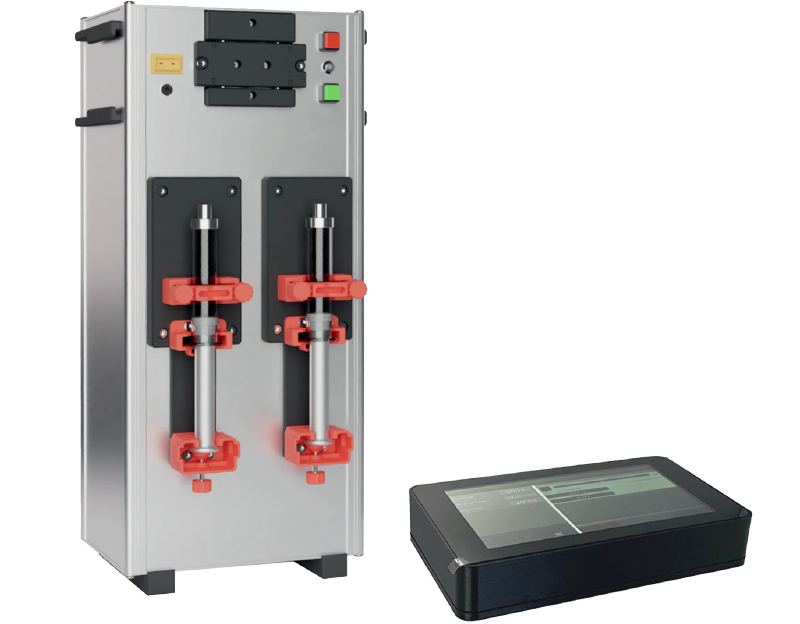

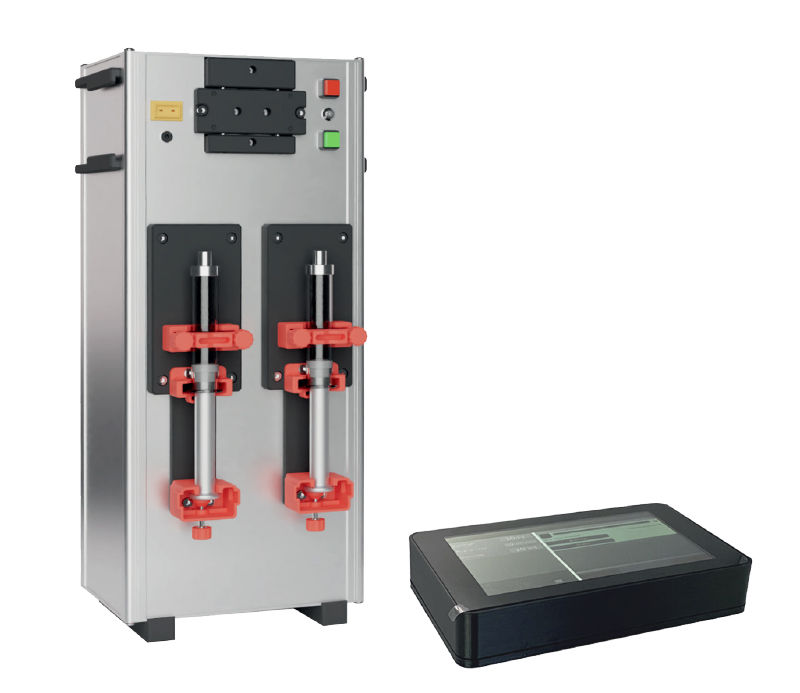

Precision syringe pumps

Precision syringe pumps
Precision syringe pumps

PLANOPTIK’s continuous syringe pump can be used for flow chemistry applications and fea­tures an integrated pressure-drop correction with a maximum pressure of 10 bar. The high-pressure version is limited to 50 bar.

–

–

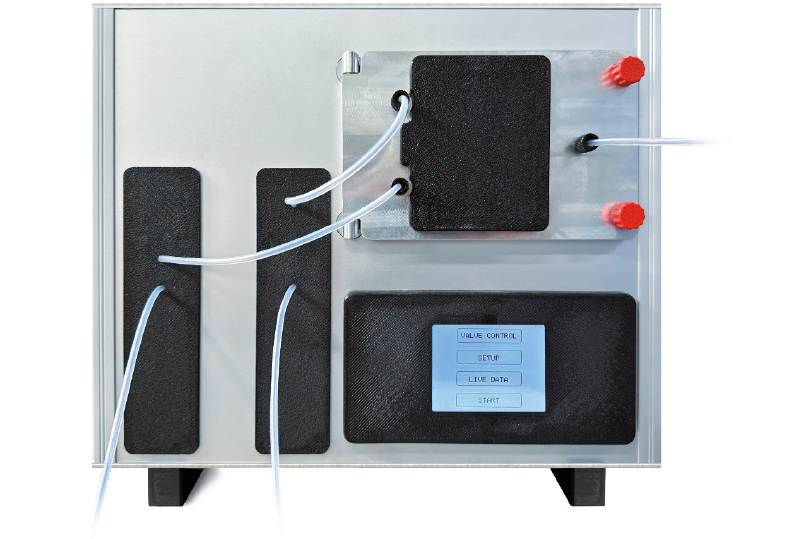

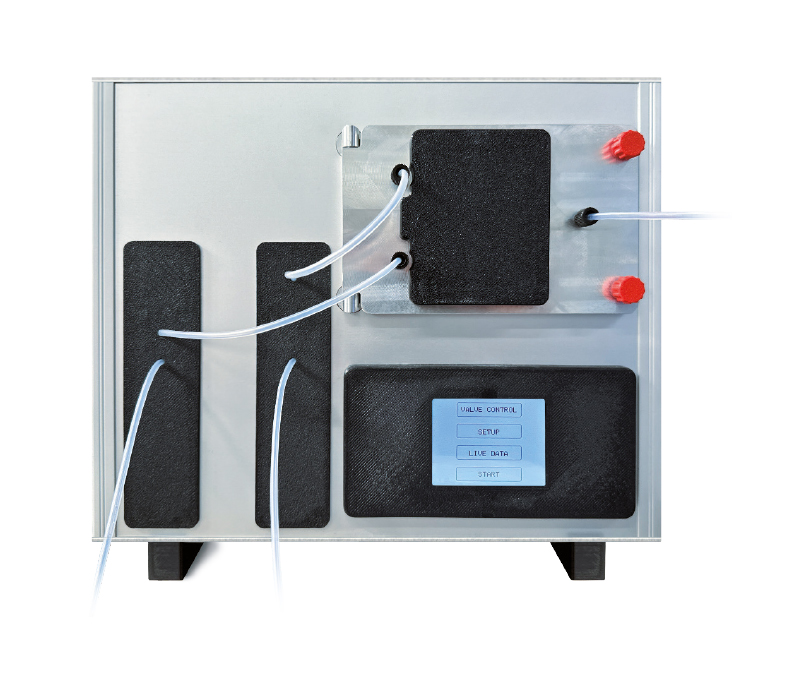

Phase separator

Phase separator
Phase separator

PLANOPTIK’s Phase Separator is fully automa­ted and ensures continuous separation under varying conditions. The system is not limited to liquid media; it also enables the separation of liquid-gas mixtures. The Phase Separator in­cludes on-board calibration for the media to be separated.

–

–

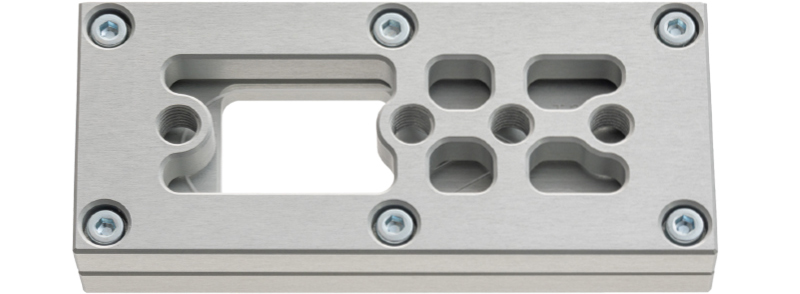

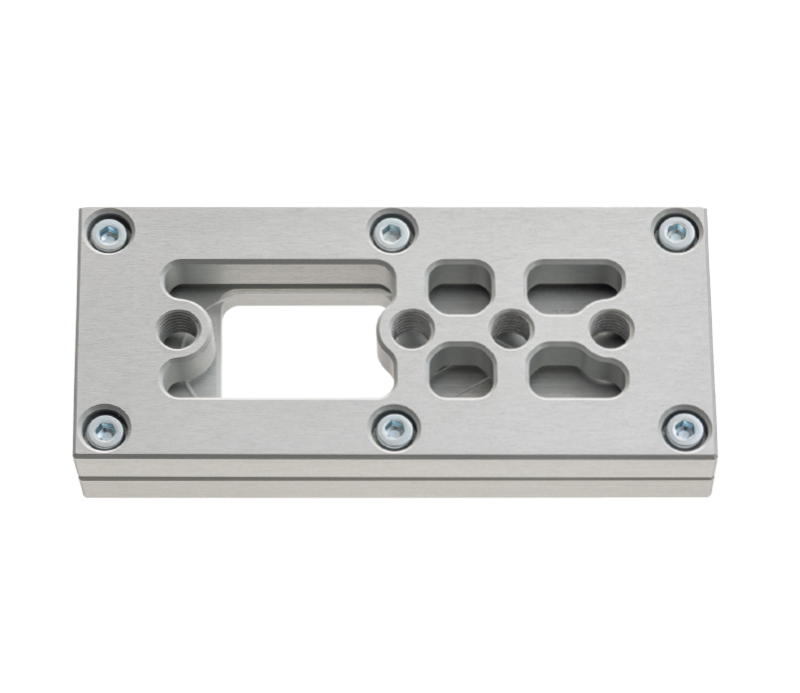

Accessories

Accessories
Accessories

Additional equipment for your complete flow chemistry setup:
– Mounting frames
– Connection kits
– Pressure sensors
– Chip holders
– Syringes

–

–

Team up with PLANOPTIK

–

–

Team up with PlanOptik
Team up with PlanOptik

–

–

Individually developed

Are you developing a new microsystem? Are you combining microelectronics, micromecha­nics or microfluidics to create a new product? Are you developing a sensor, an electronic device, a fluidic system or something that has never existed before? Team up with PLANOPTIK.

–

–

Reliable partnership

In us you will find a partner who will work with you to develop electronic, mechanical, optical, chemical or biological microcomponents and has a firm grasp of materials such as glass, silicon and copper.

Team up with PlanOptik

–

–

Together until production

PLANOPTIK also manufactures the jointly deve­loped microcomponents and elements in high volumes using state-of-the-art wafer-based manufacturing processes.
