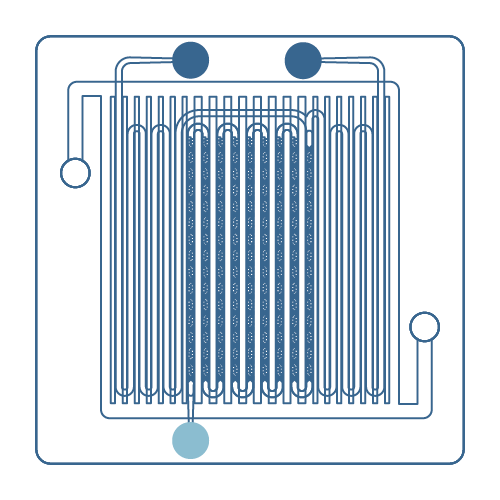

The LTF emulsifier is a microfluidic system for the simple production of multiphase emulsion droplets, where the droplet size can be controlled by the flow rate. The reactor has an integrated heat exchanger and will be connected via 1/2″ bonded glass threads, while the heat exchanger is connected via SWAGELOK fittings. More information can be found in the product sheet.
| material | Borofloat®33 |
|---|---|
| dimension | 179 x 123 x 17 ± 0.5 mm |
| outer-layer | Heat exchanger |
| inner-layer | Mixer / holding line |
| inlets | 3 |
| flussrate | 205 ml/min |
| pressure-resistance-mixer | 15 bar |
| pressure-resistance-he | 7 bar |
